Driver And Front Passenger Door Opener Illumination Bulb -L108- / -L109-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING

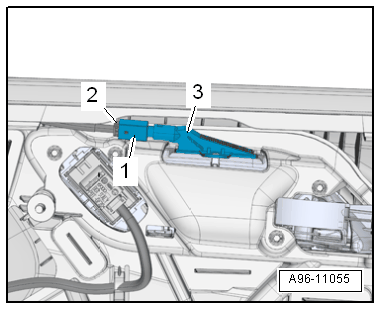

-- Turn the bulb socket -1- to the left and remove it from the lighting strip -3-.

GWWA96-11055Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.
