CUPHOLDER Ambient Lighting Lamp -L232-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

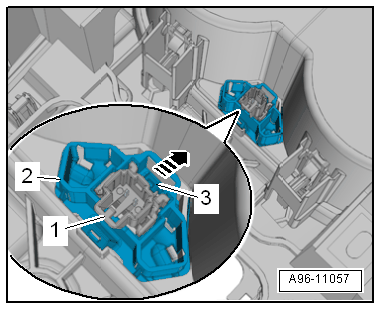

-- Open the tab -3- in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove lamp -1- from mount -2-.
