Power Window Control Head In Driver Door -E512-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Remove The Insulation Mat.

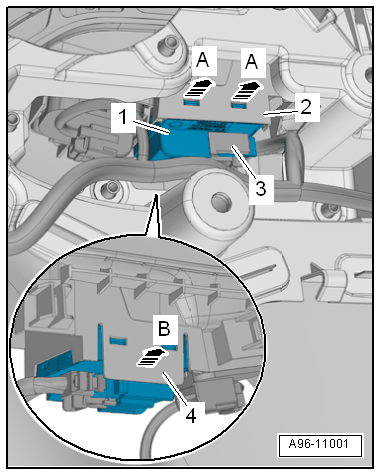

-- Carefully release the hooks in direction of -arrows A- with a small screwdriver.
-- Release the unlock button -4- in direction of -arrow B-.
-- Remove the window regulator switch -1- from the switch mount -2- and remove it to the rear.
-- Disconnect the connector -3-.
NOTE:
The control head for a 3-door vehicle is shown in the illustration.
