Headlamp Range Control Adjuster -E102-, Removing And Installing: Removing

-- Remove the light switch. Refer to LIGHT SWITCH -E1-, REMOVING AND INSTALLING .

-- Release the retainers in direction of -arrows-.

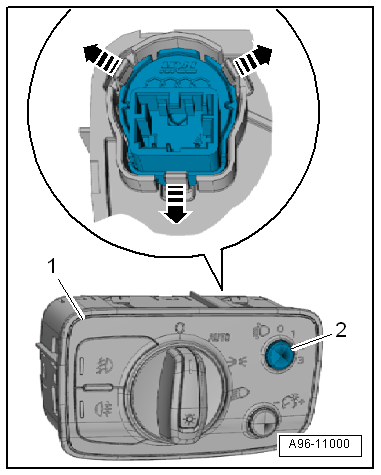

Fig 1: Light Switch End View Connector With Adjuster

Courtesy of AUDI OF AMERICA, LLC

-- Press the headlamp range control adjuster -2- toward the rear out of the light switch -1-.
