Electromechanical Parking Brake Button -E538-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove The Center Console Insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
-- Vehicle Equipment Version With MMI: Remove The Multimedia System Control Head. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING / COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

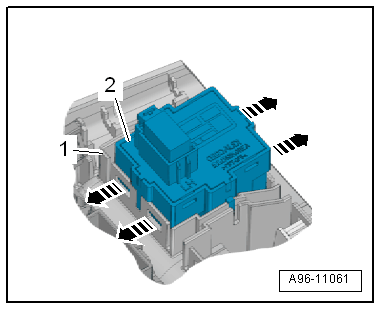

-- Release the retaining tabs in direction of -arrows- and remove the button -2- downward from the center console insert -1-.
