Access/Start Authorization Button -E408-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove The Multimedia System Control Head. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING / COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

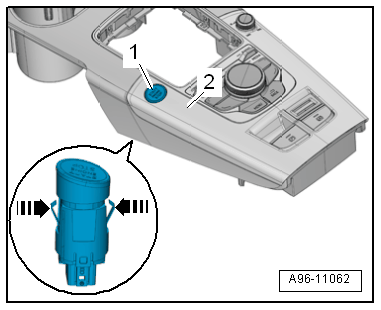

-- Press the access/start authorization button -1- out of the control head -2-. While doing so, the retainers are released -arrows-.
NOTE:
If the button cannot be removed, release the retainers using the Locking Pin:T40011 .
