Socket -U-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Convertible:  Remove the right luggage compartment side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

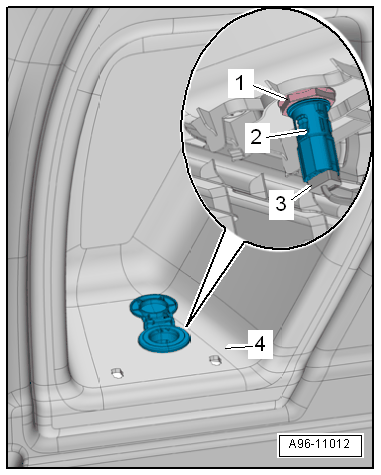

-- Open the cover -4- on the luggage compartment side trim panel.

GWWA96-11012Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Remove the nut -1-.

-- Remove the 12 V Socket -2- from the luggage compartment side trim panel cover.
