Alarm Horn -H12-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove The Plenum Chamber Cover. Refer to OVERVIEW - PLENUM CHAMBER COVER / PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

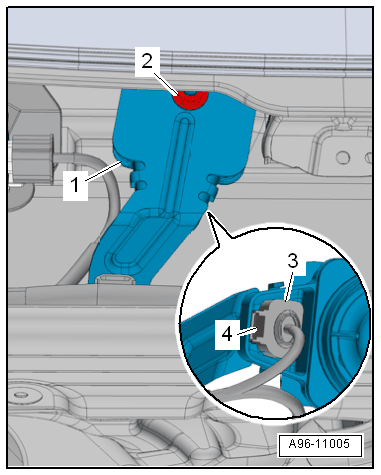

-- Remove the nut -2-.
-- Remove the alarm horn -1- from the bracket.
-- Pull the retainer -4- and press the release to disconnect the connector -3-.
-- Remove the alarm horn.
