Battery Tray, Removing And Installing: Removing

-- Versions with a transmission ventilation: detach the transmission ventilation -1- from the battery tray and set aside by releasing the catch -2- and removing the transmission ventilation upward in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Versions with NOx Sensor Control Module -J583- : loosen the NOx Sensor Control Module -2- from the battery tray and move to the side, to do so release the catches -3 and 4- and remove the bracket -1- upwards -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Air filter housing in front of the battery: Remove the air filter housing. Refer to AIR FILTER [For engine(s) CRUA, DEJA] or AIR FILTER [For engine(s) CNSB, CNTC] .

-- Remove the battery. Refer to BATTERY IN ENGINE COMPARTMENT, REMOVING AND INSTALLING .

-- Free up the wiring harness.

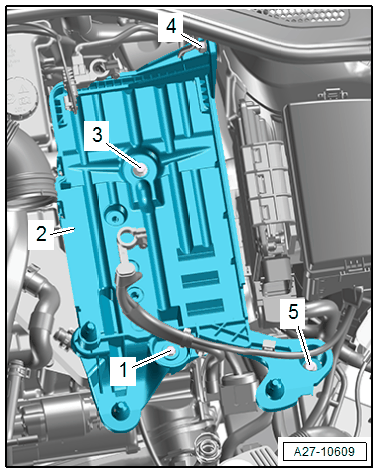

-- Remove the bolts -1, 3 and 5-.

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles from 11/2013: remove the nut -4-.

-- Remove the battery tray -3-.
