Overview - Battery Jump Start Terminal

WARNING: This page is about a different variant/trim than selected.

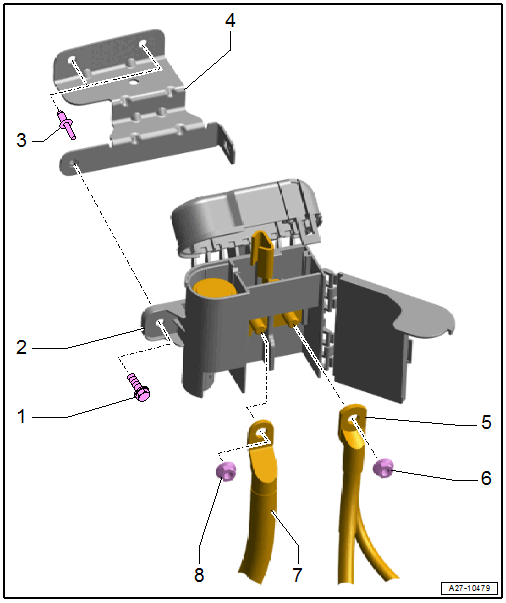

Fig 1: Exploded View Of Battery Jump Start Terminal
GWWA27-10479Courtesy of AUDI OF AMERICA, LLC
  1. Screw
    • 6 Nm
  2. Battery Jump Start Terminal -U6-
  3. Rivets
    • Quantity: 2
  4. Resume
    • For Battery Jump Start Terminal -U6-
  5. Positive Cable
    • E-Box
  6. Nut
    • 15 Nm
  7. Positive Cable
    • Battery
  8. Nut
    • 15 Nm
