Battery Jump Start Terminal, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and disconnect the ground cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT .
-- Remove the air filter housing. Refer to AIR FILTER [For engine(s) CNSB, CNTC] .

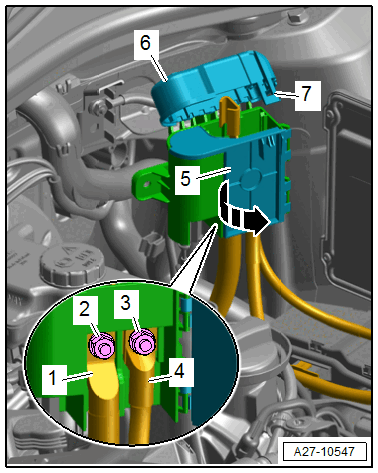

-- Release the catch -7- and open the cover -6-.
-- Unlock the door -5- and swivel it to the side -arrow-.
-- Remove the nuts -2 and 3- and move the wires -1 and 2- to the side.

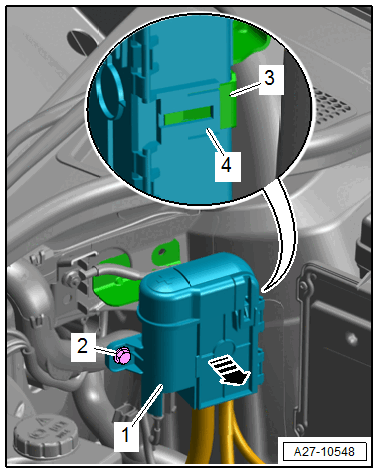

-- Remove the bolt -2-.
-- Release the catch -4- and remove the battery jump start terminal -1- forward from the mount -3- -arrow-.
