Overview- Adaptive Cruise Control, Version 3

WARNING: This page is about a different variant/trim than selected.

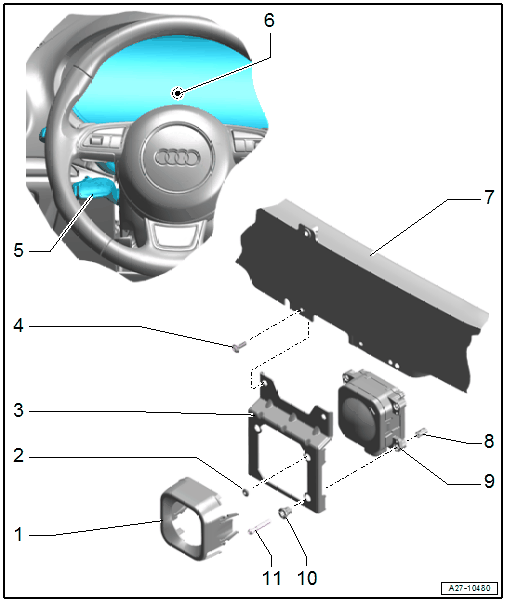

Fig 1: Exploded View Of Adaptive Cruise Control, Version 3

Courtesy of AUDI OF AMERICA, LLC

Cover
Plug
Retaining Plate
- Removing and installing. Refer to Distance Regulation Control Module -J428- RETAINING PLATE, REMOVING AND INSTALLING, VERSION 3 .
Screw
- 5.5 Nm
- Quantity: 2
Operating Lever for Adaptive Cruise Control
- Common part with the steering column switch module. Cannot be replaced separately
- Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH, REMOVING AND INSTALLING .
Instrument Cluster
- With Instrument Cluster Control Module -J285-
Impact Member
Clip
- Must only be replaced when the same distance regulation control module is reinstalled
- Replacing. Refer to CLIP ON Distance Regulation Control Module -J428-, REPLACING, VERSION 3 .
- Quantity: 3
Distance Regulation Control Module -J428-
- Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .
Clip
- Quantity: 3
Stud Bolt
- Quantity: 3
- Note the adjustment dimension. Refer to Installing
