Overview - Adaptive Cruise Control, Version 2

WARNING: This page is about a different variant/trim than selected.

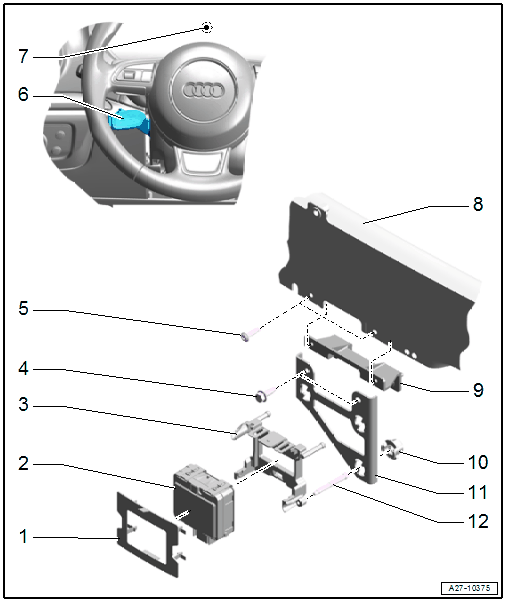

Fig 1: Exploded View Of Adaptive Cruise Control, Version 2

Courtesy of AUDI OF AMERICA, LLC

Cover
Distance Regulation Control Module -J428-
- Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .
Adapter Frame with Stud Bolt
- For Distance Regulation Control Module -J428-
- Replacing. Refer to Distance Regulation Control Module -J428- ADAPTER FRAME, REPLACING, VERSION 2 .
Bolt
- 8 Nm
- Quantity: 2
Bolt
- 5.5 Nm
- Quantity: 2
Operating Lever for Adaptive Cruise Control
- Common part with the steering column switch module. Cannot be replaced separately
- Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH, REMOVING AND INSTALLING .
Instrument Cluster
- With Instrument Cluster Control Module -J285-
Impact Member
Bracket
- There are different versions. Refer to the Parts information.
Quick Release Fastener
- Always replace
- Quantity: 3
Retaining Plate
- There are different versions. Refer to the Parts information.
- Removing and installing. Refer to BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, VERSION 2 THROUGH MY 2016 .
Stud Bolt
- Quantity: 2
- Pay attention to the adjustment dimension for vehicles through MY 2016. Refer to Installing .
- Pay attention to the adjustment dimension for vehicles from MY 2017. Refer to Installing .
