Distance Regulation Control Module -J428-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front bumper cover. Refer to Front Bumper .

-- Disconnect the connector -1-.

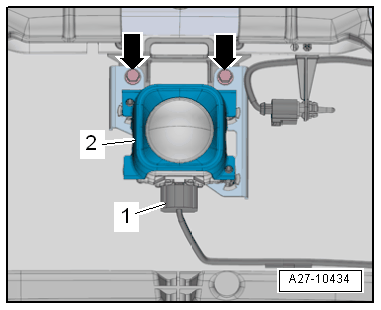

GWWA27-10434Courtesy of AUDI OF AMERICA, LLC

-- For Audi RS3, free up the wiring harness.

-- Remove the bolts -arrows-.

-- Remove the distance regulation control module -2-.
