Connection Diagram - Coolant Hoses, Vehicles With Auxiliary Radiator And Transmission Fluid Cooler
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Blue = large coolant circuit.
Red = small coolant circuit.
Brown = heating circuit.
Yellow = transmission fluid cooling circuit.
The arrows show the coolant flow direction.

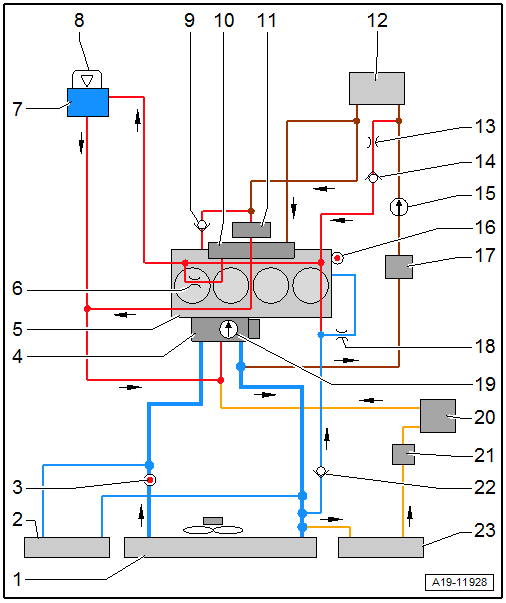

Fig 1: Connection Diagram - Coolant Hoses, Vehicles With Auxiliary Radiator And Transmission Fluid Cooler
- Radiator
- Change the coolant after replacing
- Auxiliary Cooler
- Depending on vehicle equipment
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Engine Temperature Control Actuator -N493-
- Cylinder Head/Cylinder Block
- Change the coolant after replacing
- Restrictor
- Coolant Expansion Tank
- Coolant Expansion Tank Cap
- Checking the pressure relief valve. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Check Valve
- Exhaust Manifold
- Integrated in cylinder head
- Turbocharger
- Heater Core for the Heater
- Change the coolant after replacing
- Restrictor
- Check Valve
- After-Run Coolant Pump -V51-
- Engine Coolant Temperature Sensor -G62-
- Coolant Shut-Off Valve -N82-
- Restrictor
- Coolant Pump
- Transmission Fluid Cooler
- Coolant Shut-Off Valve -N82-
- Check Valve
- Auxiliary Cooler
- For transmission fluid cooling circuit
