Exhaust Pipes/Mufflers, Separating: Procedure
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the safety precautions when working on the exhaust system. Refer to SAFETY PRECAUTIONS WHEN WORKING ON EXHAUST SYSTEM .

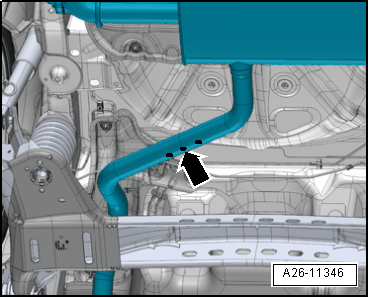

-- Separate the exhaust pipe at a right angle at the separating point -arrow- using a :VAS6254 .

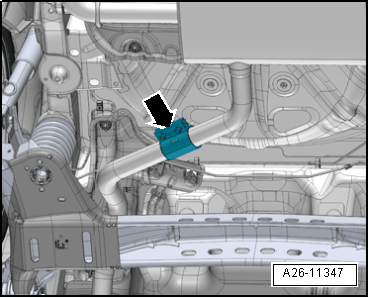

-- When installing, position clamping sleeve -arrows- centrally on the separation point.
-- Note installation position:
- Refer to INSTALLED POSITION OF REAR CLAMPING SLEEVE .
