EGR Cooler Bracket Tightening Specification And Sequence

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

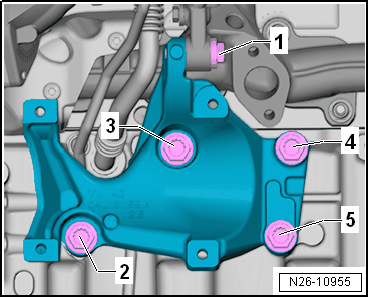

GWWN26-10955Courtesy of AUDI OF AMERICA, LLC
Step Bolts Tightening specification
1. -2 to 5- Install the bolts all the way in by hand
2. -1- Tighten to 20 Nm.
3. -2 to 5- Tighten to 55 Nm.
