Fan Shroud With A Coolant Fan

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

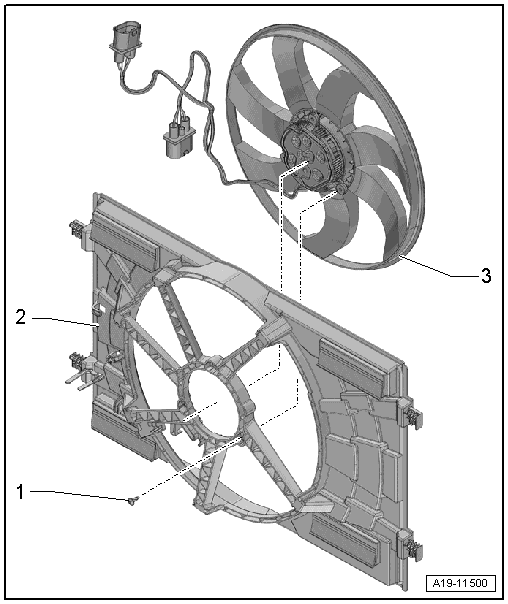

Fig 1: Exploded View Of Fan Shroud With A Coolant Fan
GWWA19-11500Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 5 Nm
  2. Fan Shroud
  3. Coolant Fan -V7-
