Vehicles With Transmission Fluid Cooler And Auxiliary Heater

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

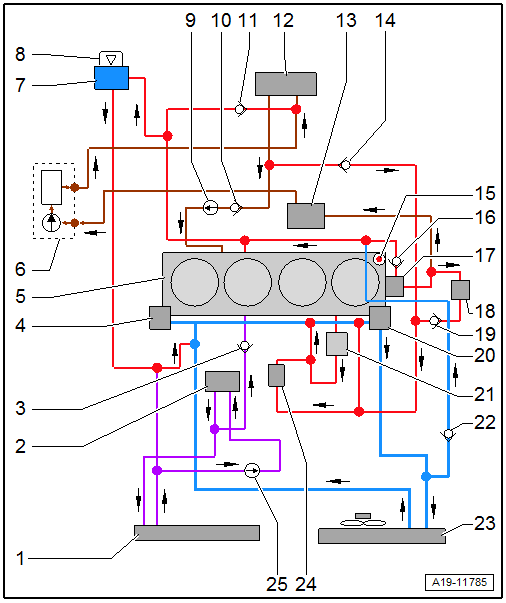

GWWA19-11785Courtesy of AUDI OF AMERICA, LLC
  1. Cooler for the Charge Air Cooling Circuit
    • Change the coolant after replacing
  2. Charge Air Cooler
    • Change the coolant after replacing
  3. Check Valve
  4. Coolant Pump
  5. Cylinder Head/Cylinder Block
    • Change the coolant after replacing
  6. Parking Heater
    • Vehicles versions
  7. Coolant Reservoir
  8. Cover
  9. Heater Support Pump -V488-
    • Installed, depending on the version
  10. Check Valve
  11. Check Valve
  12. Heater Core for Heater
    • Change the coolant after replacing
  13. EGR Cooler
    • Change the coolant after replacing
  14. Check Valve
  15. Engine Coolant Temperature Sensor -G62-
  16. Check Valve
  17. Coolant Connection
  18. Transmission Fluid Cooler
    • Vehicles versions
  19. Check Valve
  20. Coolant Thermostat
  21. Engine Oil Cooler
  22. Check Valve
  23. Radiator
    • Change the coolant after replacing
  24. Throttle Valve Control Module -J338-
  25. Charge Air Cooling Pump -V188-
