Coolant Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING WITHOUT COOLING SYSTEM CHARGE KIT - ELECTRIC VACUUM PUMP .
-- Remove the toothed belt. Refer to TOOTHED BELT, REMOVING AND INSTALLING .

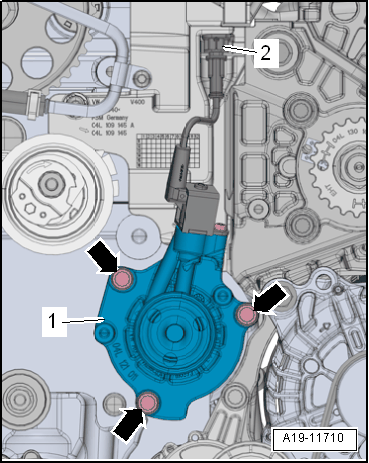

-- Disconnect the connector -2- and free up the wire.
-- Remove the bolts -arrows- and the coolant pump -1-.
