Right Front Coolant Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING WITHOUT COOLING SYSTEM CHARGE KIT - ELECTRIC VACUUM PUMP .
-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
-- Remove the Air Conditioning (A/C) compressor, with the refrigerant hoses still connected from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET / A/C COMPRESSOR, REMOVING AND INSTALLING and tie up to the right side.

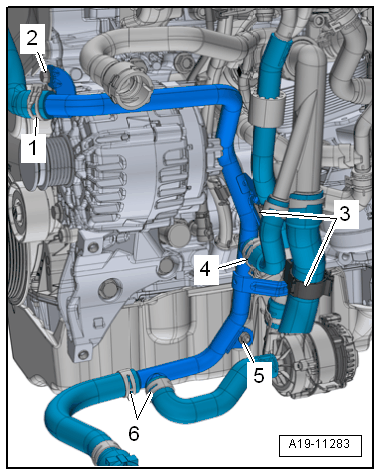

-- Loosen the clamps -1, 4 and 6- and remove the coolant hoses.
-- Remove the nut -5- and the bolt -2-.
-- Free up the coolant hoses -3-, and remove the front right coolant pipe.
