Coolant Hoses With PRETENSIONED Spring Clamp, Installing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Hose Clip Pliers:VAS6362
Release Tool:VAS531001

Clamp Open:

-- Push the spring clamps together with hose clip pliers until the clip engages.

-- The clamp is opened by this and the coolant hose can be removed.

-- The clamp cannot be removed from the coolant hose.

Clamp Closed:

Courtesy of AUDI OF AMERICA, LLC

-- Install the coolant hose.

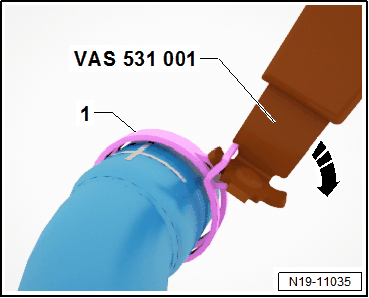

-- Release the pretensioned spring clips as follows: insert the :VAS531001 as shown in the spring clip -1-. Release the retainer.

-- Depending on the available space, use the corresponding hook to release.
