Glow Plug, Removing And Installing: Installing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
No interchanging of components of various manufacturers. When replacing individual glow plugs only use the current installed manufacturer.
When replacing all installed glow plugs changing manufacturer is possible.

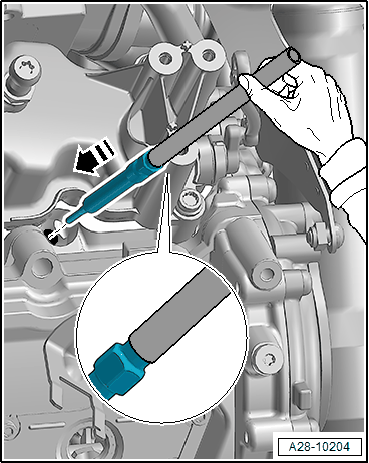

-- Carefully screw in the glow plugs by hand without tilting, using the Assembly Tool :T40428 as shown in the picture, then tighten with the torque.
Install in the reverse order of removal while noting the following:
-- Install the glow plug connector -1- on the glow plug -arrow-.
-- Check the glow plug connector for secure fit.
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
