Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

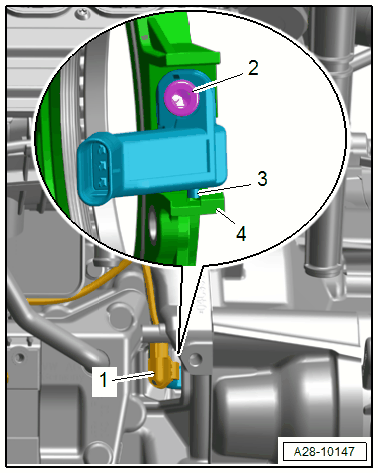

-- Move the Engine Speed Sensor -G28- into its installation position, while making sure the tab -3- slides into the guide on the sealing flange -4- as shown.
-- Tighten the bolt -2- using the Hex Socket - 4mm :T10370 and connect the connector -1-.
