Automatic Glow Time Control Module -J179-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the retainers -arrows- and remove the cover.

GWWA10-11569Courtesy of AUDI OF AMERICA, LLC

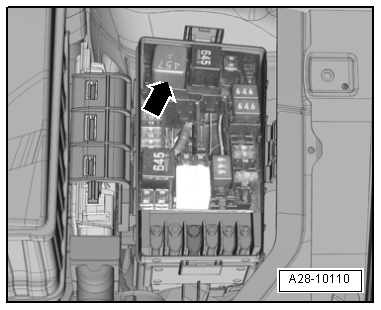

-- Remove the Automatic Glow Time Control Module -J179- -arrow- from its location in the engine compartment E-box.

GWWA28-10110Courtesy of AUDI OF AMERICA, LLC
