Charge Air Pressure Actuator -V465-, ADJUSTING
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2018 Audi S3, 2018 Audi A3 Quattro, 2017 Audi S3, 2017 Audi A3 Quattro, and 2016 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.
The Procedure Description Only Applies to Engines with Engine Code CJXC.
Special tools and workshop equipment required
- Setting Gauge: T40346
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

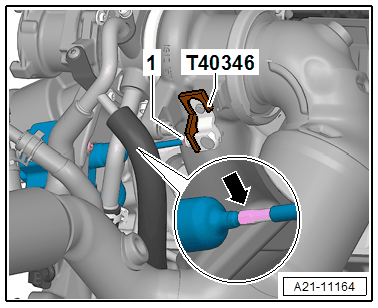

-- Insert the Setting Gauge: T40346 .
-- Adjust the Charge Air Pressure Actuator -V465- select 01 - Adjust Charge Air Pressure Actuator V465 in Guided Functions . Refer to the Vehicle Diagnostic Tester.
-- Remove the Adjustment Gauge: T40346 .
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to OVERVIEW - TURBOCHARGER
