Seat Bench/Single Seat, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seats all the way forward.

-- Unclip from the guides -1- for the child seat anchor (quantity 4) and from the anchorages, refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .

-- With both hands, grasp the seat bench -1- under the seat frame.

Courtesy of AUDI OF AMERICA, LLC

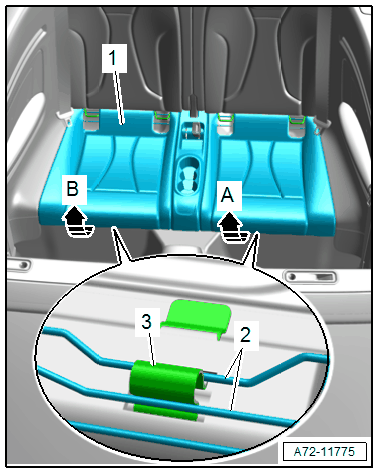

-- Pull the bench seat 1 up forcefully with both hands -arrow A- so the seat frame -2- on the bench seat disengages from the mounting -3-.

-- Repeat the procedure on the other side of the seat bench -arrow B-.

-- Disengage the bench seat from the backrest frame and remove from the vehicle.
