Backrest Panel, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear seat backrest, refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the rear seat backrest from the area of the backrest hinge, refer to COVERS AND CUSHIONS, REMOVING AND INSTALLING .

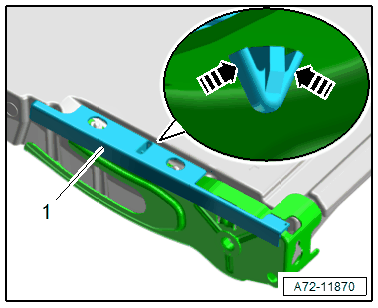

-- Remove the spacing device -1-, to do this release the retainers -arrows- with a small screwdriver through the opening.

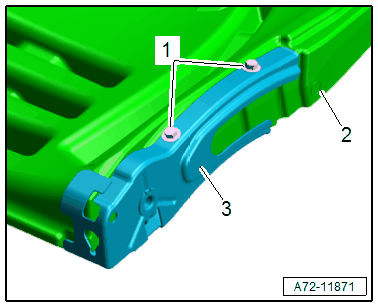

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the backrest hinge -3- from the backrest shell -2-.
