Overview - Seat Bench/Single Seat

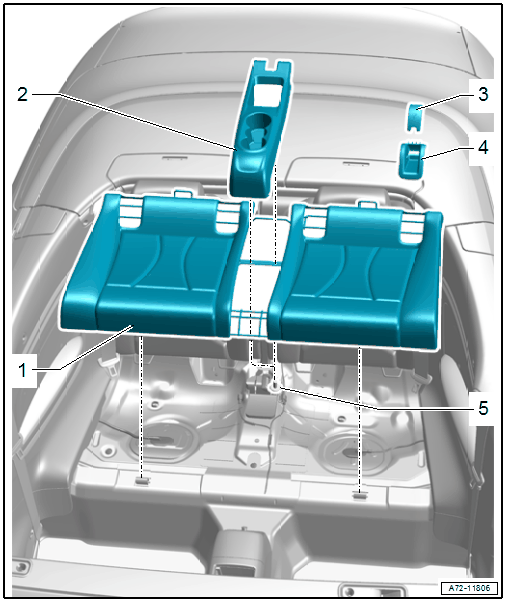

Fig 1: Exploded View Of Seat Bench/Single Seat

Courtesy of AUDI OF AMERICA, LLC

Rear Bench Seat
- Removing and installing, refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .
- The seat frame must correctly in the mount.
Center Storage Compartment
- Removing and installing, refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Clipped to the seat frame
Cover
- For the LATCH child seat anchor
- Quantity: 4
- Removing and installing, refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Must be secure in the anchor
Guide
- For the LATCH child seat anchor
- Quantity: 4
- Removing and installing, refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Must be secure in the anchor
Bolt
- 0.9 Nm
- Quantity: 2
