Overview - Retainer

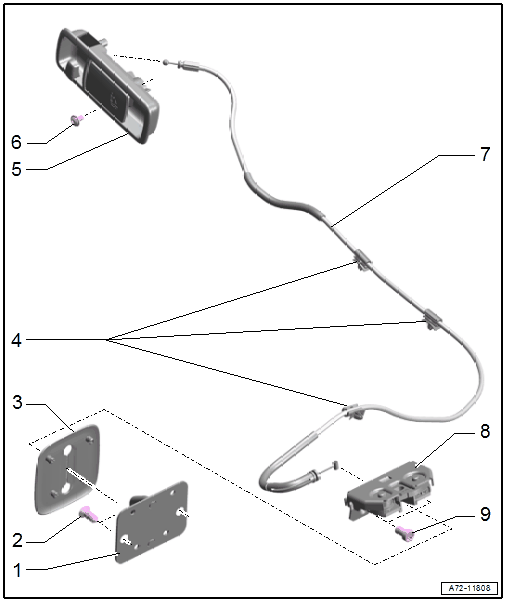

Fig 1: Exploded View Of Rear Seat Backrest Retainer (Backrest Latch)

Courtesy of AUDI OF AMERICA, LLC

Locking Bracket
- For the rear seat backrest
- Removing and installing, refer to REAR SEAT BACKREST LOCKING BRACKET, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
- Quantity: 2
Cover
- For the locking bracket
- Removing and installing, refer to REAR SEAT BACKREST LOCKING BRACKET, REMOVING AND INSTALLING .
- Press on until it engages audibly
Bracket
- For the release
- Quantity: 3
- Clipped to the body
Backrest Release
- For the rear seat backrest
- Removing and installing, refer to RELEASE, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
Release Cable
- For backrest latch
- Removing and installing, refer to RELEASE, REMOVING AND INSTALLING .
Backrest Latch
- For the rear seat backrest
- Removing and installing, refer to BACKREST LATCH LOCKING MECHANISM, REMOVING AND INSTALLING .
Bolt
- 18.5 Nm
- Quantity: 2
