Overview - Backrest Release And Entry Assistance

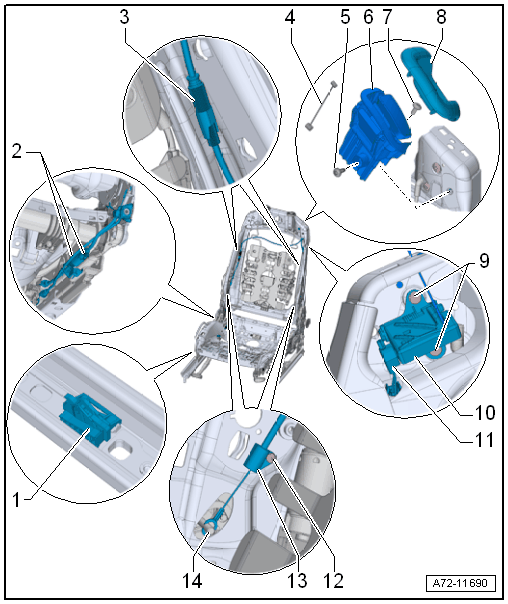

Fig 1: Exploded View Of Front Seat Backrest Release And Entry Assistance

Courtesy of AUDI OF AMERICA, LLC

1. Slider
   • Removing and installing, refer to GLIDING PIECE, REMOVING AND INSTALLING .
2. Entry Assistance Release Cable
   • From the backrest hinge to the seat rail release
   • Removing and installing, refer to ENTRY ASSISTANCE CABLE B, REMOVING AND INSTALLING , ENTRY ASSISTANCE RELEASE CABLE A, REMOVING AND INSTALLING .
   • Engage the cable eyelet and engage audibly by pulling on the cable.
   • Adjusting, refer to ENTRY ASSISTANCE RELEASE CABLE A, ADJUSTING
3. Release Cable Adjuster
   • Quantity: 2
   • For cable backrest release.
4. Connecting Cable
   • For the backrest release
   • Between the handle and bracket
   • Engaged in the handle and bracket
   • Removing and installing, refer to CONNECTING CABLE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
5. Bolt
   • 3.5 Nm
6. Backrest Release
   • Removing and installing, refer to BACKREST RELEASE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
7. Bolt
   • 3.5 Nm
8. Backrest Release Trim
   • Removing and installing, refer to BACKREST RELEASE TRIM, REMOVING AND INSTALLING .
   • Press on until it engages audibly
9. Rivet
   • Quantity: 2
10. Mount
    • For the backrest release
    • For the backrest release cable
    • Riveted to backrest frame
    • Removing and installing, refer to BACKREST RELEASE MOUNT, REMOVING AND INSTALLING .
11. Release Cable
    • Component of the release cable
    • Press on until it engages audibly
12. Rivet
    • Quantity: 2
13. Release Cable
    • For the backrest release
    • One piece
    • Removing and installing, refer to BACKREST RELEASE CABLE, REMOVING AND INSTALLING .
    • Adjusting, refer to BACKREST RELEASE CABLE, ADJUSTING
14. Pins
    • For the backrest release
    • Both sides
    • Component of the backrest hinge.
