Left And Right Head Area Heater Fan -V450- / -V451-: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove backrest seat cover and cushion, refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

-- Disconnect the connectors, to do this press the release.

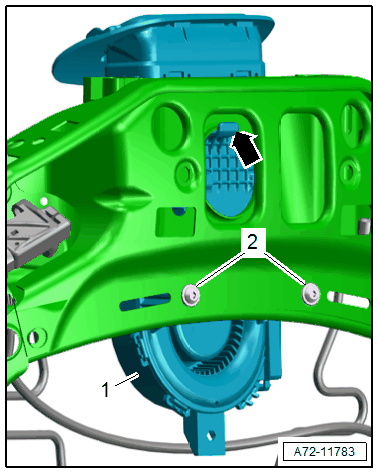

-- Remove the bolts -2-.

-- Disengage the blower -1- for the head area heater on the backrest frame -arrow- and remove.
