Overview - Head Area Heater Versions

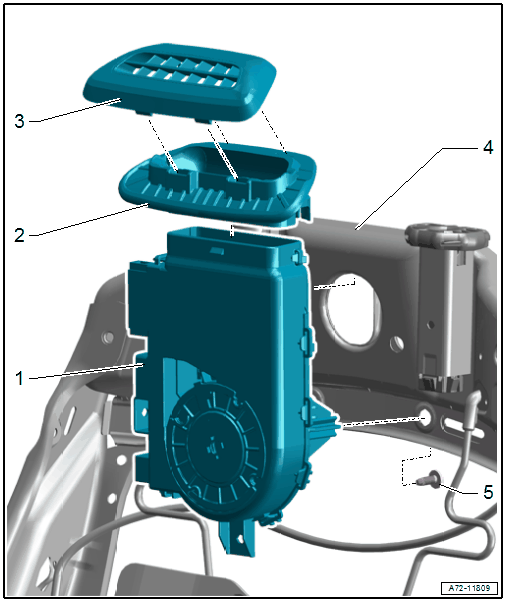

Fig 1: Exploded View Of Seats Head Area Heater (Seat With Heat Version)

Courtesy of AUDI OF AMERICA, LLC

Head Area Heater
- Driver side: Left Head Area Heater Fan -V450-
- Front passenger side: Right Head Area Heater Fan -V451-
- Removing and installing, refer to LEFT AND RIGHT HEAD AREA HEATER FAN -V450- / -V451- .
- Engage on the backrest frame
Air Guide
- Clipped into the cabin heater
- Press on until it engages audibly
Cabin Heater Vent
- Removing and installing, refer to HEAD AREA HEATER VENTS, REMOVING AND INSTALLING .
- Clipped into the air guide
- Press on until it engages audibly
Backrest Frame
Bolt
- 3.5 Nm
- Quantity: 2
