Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING, AUDI TT ROADSTER: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right rear panel trim panel. Refer to REAR PANEL TRIM PANEL, REMOVING AND INSTALLING .

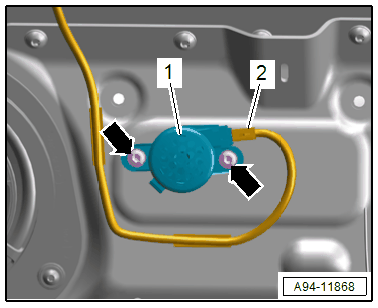

-- Remove the bolts -arrows-.

GWWA94-11868Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear parking aid warning buzzer -1- with the expanding clips.

-- Disconnect the connector -2-.
