Overview - Headlamps, Led Headlamps

WARNING: This page is about a different variant/trim than selected.

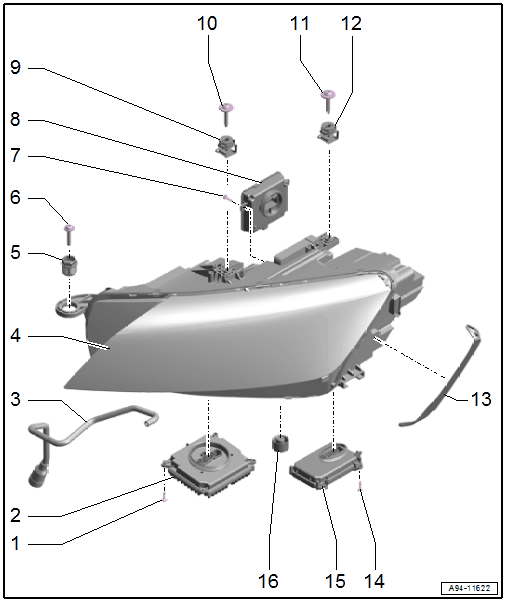

Fig 1: Exploded View Of LED Headlamps
GWWA94-11622Courtesy of AUDI OF AMERICA, LLC
  1. Screw
    • 1.5 Nm
    • Quantity: 4
  2. LED Headlamp Power Output Module 1
  3. Breather Hose
    • For headlamp
  4. Headlamp
    • The Left Headlamp Beam Adjustment Motor -V48- /Right Headlamp Beam Adjustment Motor -V49- is in the headlamp housing and cannot be replaced separately if it is faulty.
    • The Left Headlamp Fan -V407- /Right Headlamp Fan -V408- is in the headlamp housing and cannot be replaced separately if it is faulty.
    • The Left Matrix Headlamp Power Output Module -A44-, Right Matrix Headlamp Power Output Module -A45- are located in the headlamp housing and cannot be replaced separately if faulty.
    • The Left Front Side Marker Lamp Bulb -M33-, Right Front Side Marker Lamp Bulb -M34- are North American market-specific located in the headlamp housing and cannot be replaced separately if faulty.
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
  5. Adjusting Nut
    • 13 Nm
    • Quantity: 2
    • For the headlamp height adjustment
  6. Screw
    • 4.5 Nm
  7. Screw
    • 1.5 Nm
    • Quantity: 3
  8. LED Headlamp Power Output Module 2
  9. Adjuster
    • For adjusting the headlamp housing to the bumper contour
  10. Screw
    • 4.5 Nm
  11. Screw
    • 4.5 Nm
  12. Adjuster
    • For adjusting the headlamp housing to the bumper contour
  13. Sealing Frame
  14. Screw
    • 1.5 Nm
    • Quantity: 3
  15. Headlamp Power Output Module
  16. Filter Membrane
