Overview - Headlamps, Hid Headlamps

WARNING: This page is about a different variant/trim than selected.

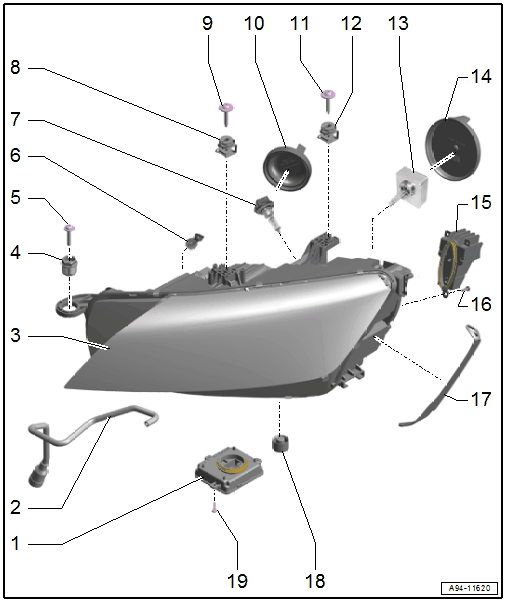

Fig 1: Exploded View Of HID Headlamps
GWWA94-11620Courtesy of AUDI OF AMERICA, LLC
  1. Daytime Running Lamp and Position Lamp Control Module
  2. Breather Hose
    • For headlamp
  3. Headlamp
    • The Left Front Side Marker Lamp Bulb -M33-, Right Front Side Marker Lamp Bulb -M34- are North American market-specific located in the headlamp housing and cannot be replaced separately if faulty.
    • Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
  4. Adjusting Nut
    • 13 Nm
    • Quantity: 2
    • For the headlamp height adjustment
  5. Screw
    • 4.5 Nm
  6. Front Turn Signal Bulb
  7. Cornering Lamp Bulb
  8. Adjuster
    • For adjusting the headlamp housing to the bumper contour
  9. Screw
    • 4.5 Nm
  10. Housing Cover
  11. Screw
    • 4.5 Nm
  12. Adjuster
    • For adjusting the headlamp housing to the bumper contour
  13. HID Headlamp Bulb
  14. Housing Cover
  15. Daytime Running Lamp and Position Lamp LED Module
  16. Screw
    • 1.5 Nm
    • Quantity: 3
  17. Sealing Frame
  18. Filter Membrane
  19. Screw
    • 1.5 Nm
    • Quantity: 3
