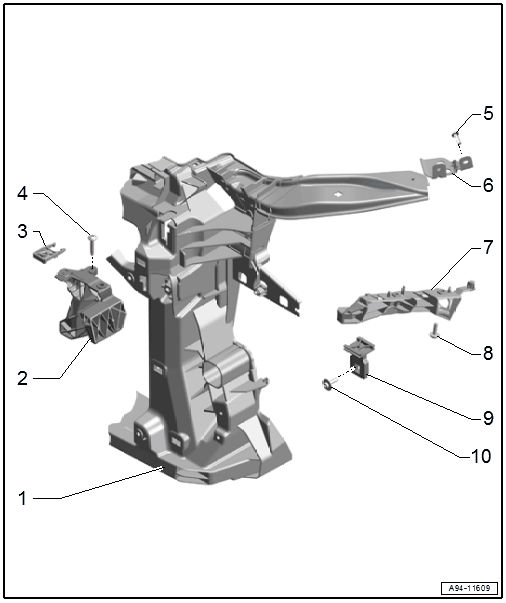

Overview - Headlamps, Headlamp Mount
WARNING: This page is about a different variant/trim than selected.
- Lock Carrier
- For mounting the headlamp
- Mount
- For headlamp
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Clip
- Adjusting Screw
- Bolt
- 9 Nm
- Quantity: 2
- Bracket
- For headlamp
- Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to OVERVIEW - BUMPER COVER .
- Bolt
- Tightening specification. Refer to OVERVIEW - BUMPER COVER
- Quantity: 2
- Mount
- For headlamp
- Removing and Installing. Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Bolt
- 4.5 Nm
