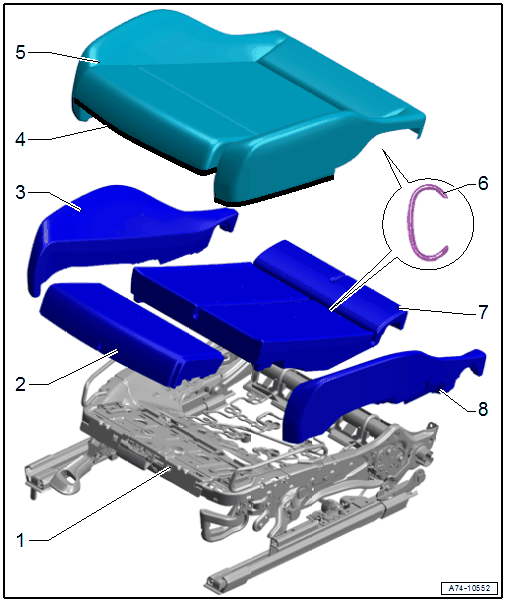

Overview - Seat Pan Cover And Cushion, Super Sport Seat
WARNING: This page is about a different variant/trim than selected.
- Seat Pan
- Seat Cushion
- For the seat depth adjustment
- Removing and installing. Refer to SEAT DEPTH ADJUSTER SEAT CUSHION, REMOVING AND INSTALLING .
- Seat Bolster Cushion
- Removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Molding
- Sewn into seat cover
- For engaging the seat cover on seat pan upper frame
- Make sure it fits correctly in the seat pan upper frame
- Seat Cover
- Vehicles with:
- Fabric
- Leather
- Allocation. Refer to the Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
- Vehicles with:
- Upholstery Clip
- Replace after removing
- For attachment of the seat cover to the seat cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
- Seat Cushion
- Allocation. Refer to the Parts Information.
- Seat cover and cushion, removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Seat Bolster Cushion
- Removing and installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
