Turbocharger Vacuum Diaphragm, Replacing: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Loosen the clamps -1 and 2-.
-- Press the release buttons on both sides and disconnect the hose -3- for the crankcase ventilation on the air duct pipe.
-- Remove the bolt -arrow- and the air duct pipe.

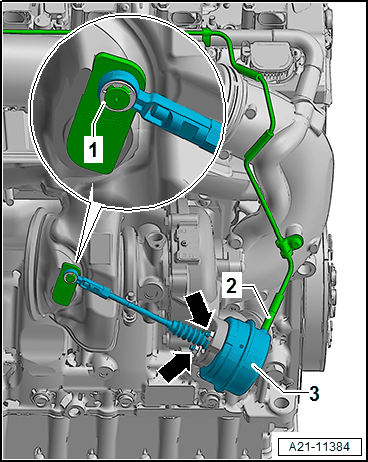

-- Remove the vacuum hose -2- from the vacuum diaphragm -3- ; do not damage it.
-- Remove the clamp -1- and control rod from the turbocharger operating lever.
-- Remove the nuts -arrows- and then remove the vacuum diaphragm -3-.
