Turbocharger Recirculating Valve -N249-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the air filter housing. Refer to AIR FILTER .

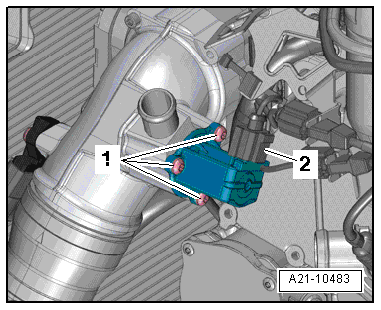

-- Disconnect the connector -2-.
-- Remove the bolts -1- and the Turbocharger Recirculation Valve -N249-.
