Turbocharger Recirculating Valve -N249-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
- Replace the O-ring after removing.

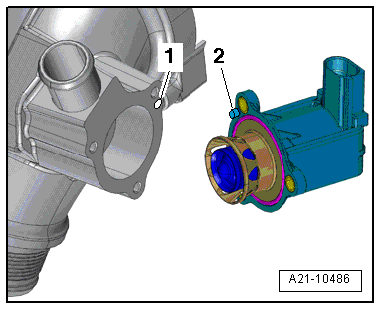

- Installation position: the tab -2- on the Turbocharger Recirculation Valve -N249- must be inserted in the opening -1- on the intake tube.
-- Install the air filter housing. Refer to AIR FILTER .
