Camshaft Adjustment Valve 1 -N205- /: N318, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Press the release buttons on both sides and disconnect the hose -3- for the crankcase ventilation on the air duct pipe.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2- and press the bracket -1- to the side.

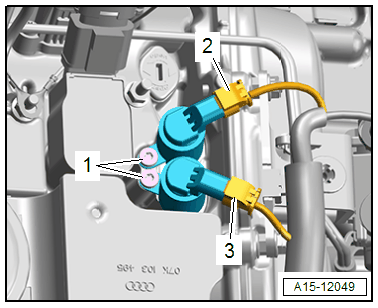

-- Disconnect the connectors:

Courtesy of AUDI OF AMERICA, LLC

2 - For Exhaust Camshaft Adjustment Valve 1 -N318-

3 - For Camshaft Adjustment Valve 1 -N205-

-- Remove the corresponding bolt -1- and remove the valve for the camshaft adjustment.
