Sensor Wheel, Checking
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2016 Audi S4, 2015 Audi S5, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Gauge - Sender Wheel T10473
Procedure
- Sensor wheel removed.
CAUTION:
There is a risk of destroying the sensor wheel by magnetic force.
- Do not place the sensor wheel near magnets (for example inspection lamp base, or speakers).
- If the drive plate/flywheel or the sensor wheel removes on its own or is replaced, before installing the sensor wheel function must be checked.
-- Check the entire circumference of the sensor wheel with the Gauge - Sender Wheel T10473 as shown.

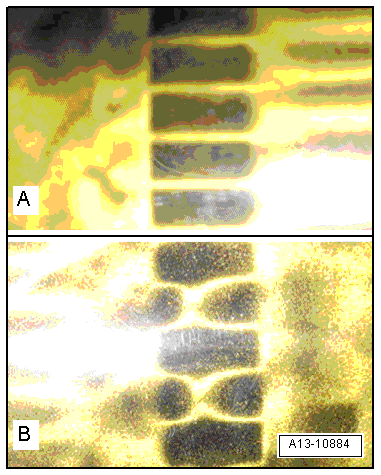

Sensor wheel test diagram
A -
Sensor wheel OK
B -
Sensor wheel faulty
