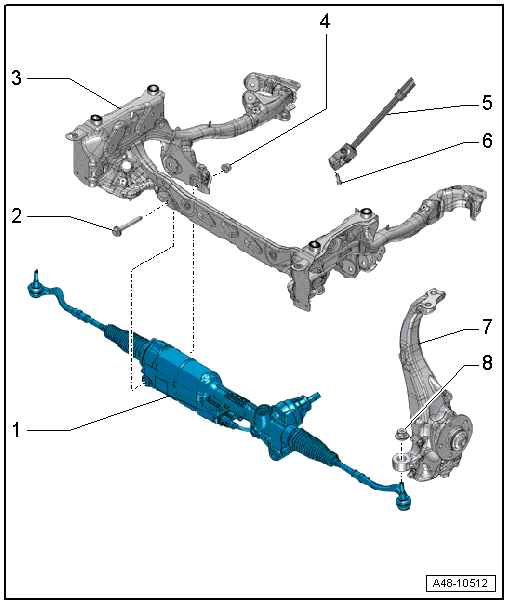

Overview - Steering Gear, Electromechanical Steering Gear With Tie Rod
- Electro-Mechanical Steering Gear with Tie Rods
- With Power Steering Control Module -J500-
- Removing and Installing. Refer to STEERING GEAR, REMOVING AND INSTALLING .
- Servicing. Refer to OVERVIEW - STEERING GEAR, ELECTROMECHANICAL STEERING GEAR .
- There are different versions. Refer to the Parts information.
A removable heat shield mat was installed on the steering gear at start of production. Be sure to install this mat if installing the old steering gear again.
A removable heat shield mat on the steering gear was replaced by a bonded heat shield mat as a running change. It is therefore not necessary to take the mat from the old steering gear and install on a new steering gear.
A replacement steering gear comes with the bonded heat shield mat.
- Bolt
- 80 Nm +180°
- Always replace if removed
- Subframe
- Nut
- Pushed into the subframe
- Always replace if removed
- Steering Intermediate Shaft
- Bolt
- Tightening Specification. Refer to -Item 18- OVERVIEW - STEERING COLUMN.
- Wheel Bearing Housing
- Nut
- 100 Nm
- Always replace if removed
