Overview - Rear Axle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

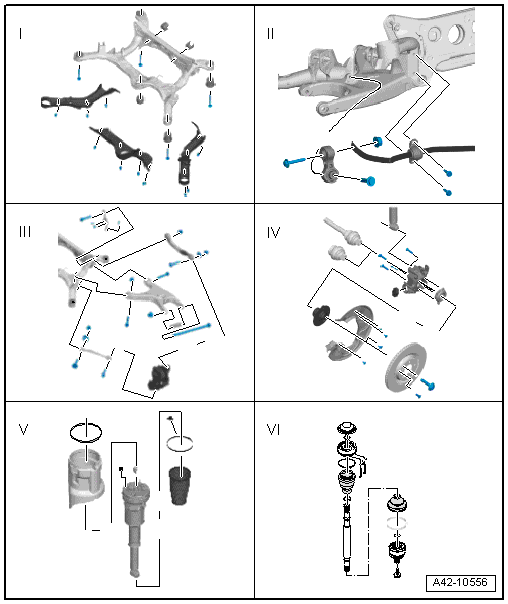

Fig 1: Overview Of Rear Axle
GWWA42-10556Courtesy of AUDI OF AMERICA, LLC
  1. I -

    Refer to SUBFRAME

  2. II -

    Refer to STABILIZER BAR

  3. III -

    Refer to CONTROL ARM, TIE ROD

  4. IV -

    Refer to SUSPENSION STRUT/SHOCK ABSORBER, SPRING

  5. V -

    Refer to WHEEL BEARING AND TRAILING ARM

  6. VI -

    Refer to DRIVE AXLE
