Overview - Power Steering Pump, Vehicles Without Dynamic Steering With 12-Cylinder Engine

NOTE:

Always replace seals.

Do not reuse fluid you have drained.

Only use hydraulic fluid.

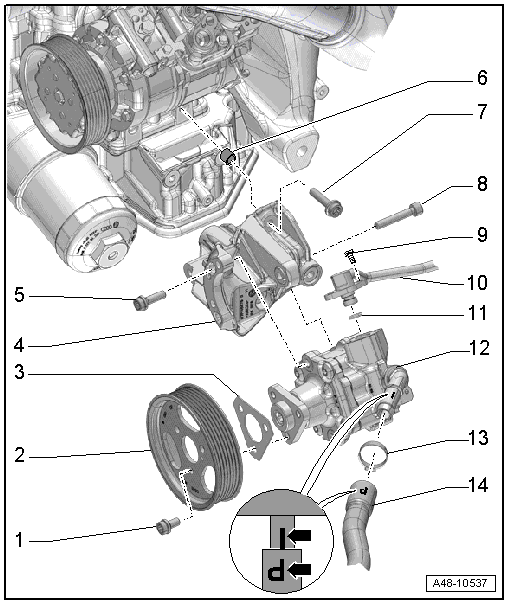

Fig 1: Overview Of Power Steering Pump, Vehicles Without Dynamic Steering With 12-Cylinder Engine

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 23 Nm
2. Belt Pulley
3. Shim
   • To adjust the ribbed belt pulley alignment. Refer to the appropriate Service Information .
   • There are different thicknesses. Refer to the Parts information.
4. Bracket
5. Bolt
   • 23 Nm
   • Power steering pump to bracket
6. Alignment Bushing
   • Quantity: 2
7. Bolt
   • 23 Nm
   • Bracket to cylinder block
8. Bolt
   • 23 Nm
   • Power steering pump to bracket
9. Bolt
   • 9 Nm
   • Quantity: 2
10. Pressure Line
    CAUTION:

    • Insert the pressure line completely when installing.
11. O-Ring
    • Replacing
12. Power Steering Pump
    • For allocation. Refer to the Parts information.
    • Fill with hydraulic fluid before installing
    • Delivery pressure, checking. Refer to POWER STEERING PUMP DELIVERY PRESSURE, CHECKING, VEHICLES WITH 12-CYLINDER ENGINE .
    • Removing and installing. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING, VEHICLES WITHOUT DYNAMIC STEERING WITH 12-CYLINDER ENGINE .
    • Check the ribbed belt pulley alignment after replacing. Refer to the appropriate Service Information .
13. Clamp
    • Always replace if removed
14. Intake Hose
    • The "P" marking on the intake hose must align with the seam on the power steering pump
