Overview - Steering Gear, Hydraulic Steering Gear With Tie Rods

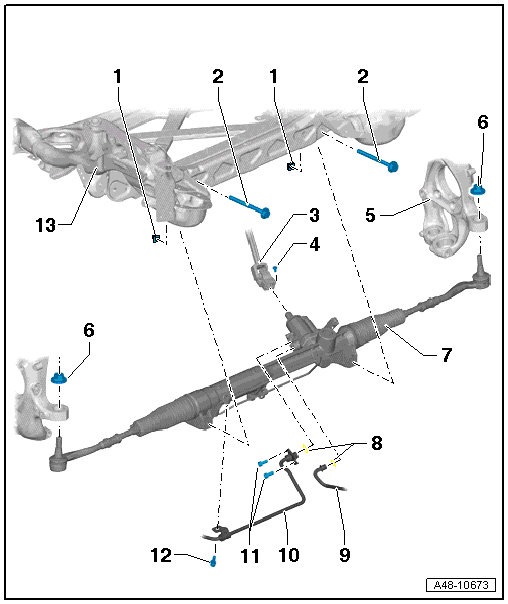

Fig 1: Overview Of Steering Gear, Hydraulic Steering Gear With Tie Rods

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • Always replace if removed
   • Pushed into the subframe
2. Bolt
   • 80 Nm +180°
   • Always replace if removed
3. Steering Intermediate Shaft
4. Bolt
   • 30 Nm
   • Always replace if removed
   • The threaded hole for the bolt must always be cleaned (for example, using a thread tap).
   • Pull on the steering intermediate shaft to make sure it is installed correctly with the bolt installed. Then tighten the bolt.
5. Wheel Bearing Housing
6. Nut
   • 130 Nm
   • Always replace if removed
7. Power Assisted Steering Gear with Tie Rods
   • Removing and installing. Refer to HYDRAULIC STEERING GEAR, REMOVING AND INSTALLING .
   • Servicing. Refer to OVERVIEW - STEERING GEAR, HYDRAULIC STEERING GEAR .
   • There are different versions. Refer to the Parts information.
8. Sealing Rings
   • Always replace if removed
9. Return Line
   CAUTION:

   • Insert the return line completely when installing.
   • There are different versions. Refer to the Parts information.
10. Pressure Line
    CAUTION:

    • Insert the pressure line completely when installing.
    • There are different versions. Refer to the Parts information.
11. Bolt
    • 20 Nm
12. Bolt
    • 20 Nm
13. Subframe
