Upper Reservoir to Body

-- Attach the bracket to the body using the bolts -1 and 2-.

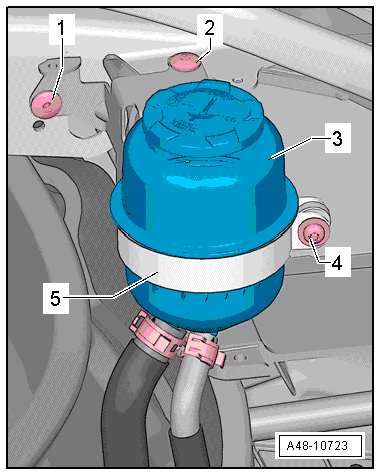

Fig 1: Installing Upper Reservoir to Body
GWWA48-10723Courtesy of AUDI OF AMERICA, LLC

-- Install the reservoir -3- into the tension strap -5- and tighten the screw -4-.

Bolt tightening specification: 9 Nm

NOTE:

Align the hoses and lines on the connections so that the color markings match up.
