Home >> Audi >> 2016 >> S8 Base >> Repair and Diagnosis >> Steering >> Steering Column >> 48 Steering >> Power Steering Hydraulics >> Overview - Hydraulic Lines And Reservoir >> Overview - Hydraulic Lines And Reservoir, Vehicles With 6-Cylinder Engine >> Installed Position: Hose Line on the Reservoir

Installed Position: Hose Line on the Reservoir

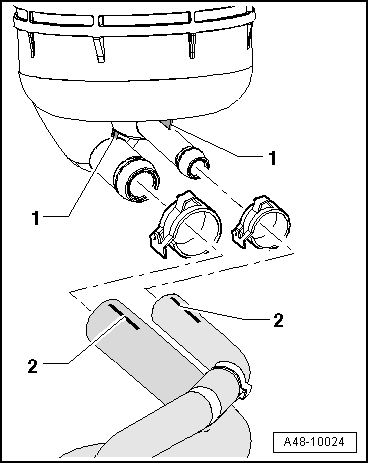

-- The markings -2- on the lines must align with the bars -1- on the reservoir.

Fig 1: Identifying Markings On Hoses And Webs On Fluid Reservoir
GWWA48-10024Courtesy of AUDI OF AMERICA, LLC
