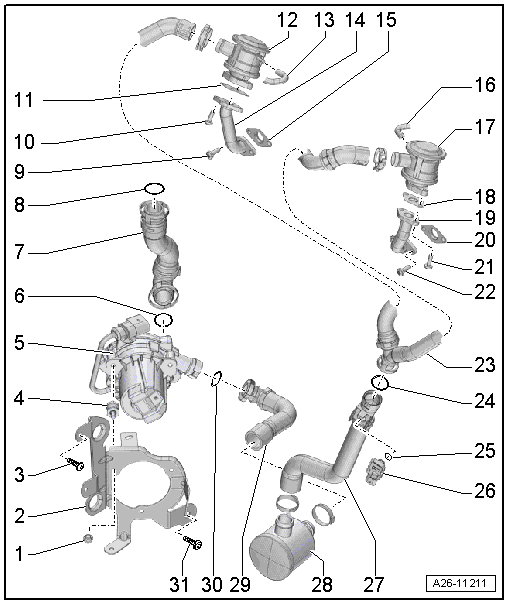

Overview - Secondary Air Injection System
WARNING: This page is about a different car, the 2015 Audi S8, 2014 Audi S8, 2014 Audi A8 Quattro, 2013 Audi S8, and 2013 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 9 Nm
- Bracket
- for Secondary Air Injection Pump Motor -V101-
- Bolt
- 8 Nm
- Bonded Rubber Bushing
- Secondary Air Injection Pump Motor -V101-
- Installed location: in the front of the engine compartment on the right side under the longitudinal member
- Removing and installing, refer to SECONDARY AIR INJECTION PUMP MOTOR -V101-, REMOVING AND INSTALLING .
- Checking in Guided Functions see Vehicle Diagnostic Tester
- O-Ring
- Replacing
- Hose
- For secondary air
- O-Ring
- Replacing
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Seal
- Replacing
- Right Secondary Air Injection Combination Valve
- Installed location: on the front of the cylinder head
- Checking, refer to COMBINATION VALVE, CHECKING .
- Removing and installing, refer to COMBINATION VALVE, REMOVING AND INSTALLING .
- Vacuum Hose
- Connection Flange
- Seal
- Replacing
- Vacuum Hose
- Left Secondary Air Injection Combination Valve
- Installed location: on the front of the cylinder head
- Checking, refer to COMBINATION VALVE, CHECKING .
- Removing and installing, refer to COMBINATION VALVE, REMOVING AND INSTALLING .
- Seal
- Replacing
- Connection Flange
- Seal
- Replacing
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Hose
- For secondary air
- to Secondary Air Injection (AIR) combi-valves
- O-Ring
- Replacing
- O-Ring
- Replacing
- Secondary Air Injection Sensor 1 -G609-
- Removing and installing, refer to SECONDARY AIR INJECTION SENSOR 1 -G609-, REMOVING AND INSTALLING .
- Hose
- For secondary air
- Resonator
- Hose
- For secondary air
- O-Ring
- Replacing
- Bolt
- 5 Nm
